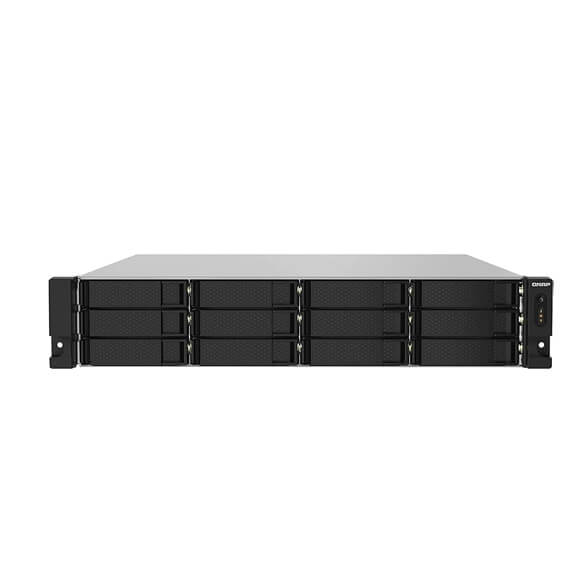

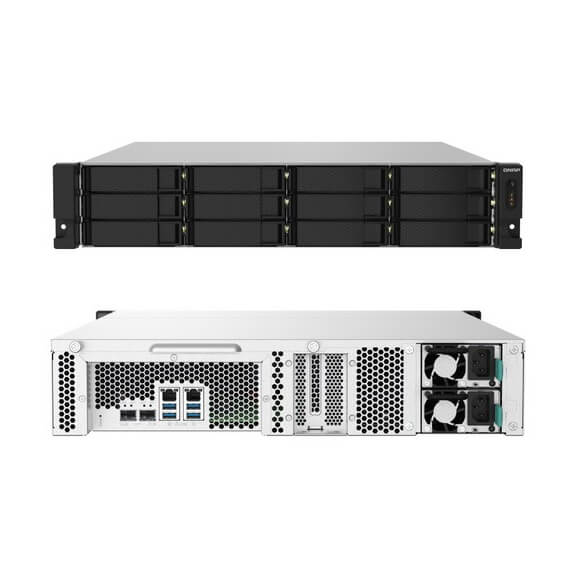

QNAP TS-1232PXU-RP-4G With Rail kit NAS Storage
128,000.00 EGP
with Rail kit
Out of stock
TS-1232PXU-RP-4G
| CPU | AnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor |
| CPU Architecture | 64-bit ARM |
| Floating Point Unit | √ |
| Encryption Engine | √ |
| System Memory | 4 GB UDIMM DDR4 |
| Maximum Memory | 16 GB (1 x 16 GB) |
| Memory Slot | 1 x UDIMM DDR4 |
| Flash Memory | 512 MB (Dual boot OS protection) |
| Drive Bay | 12 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | √ (Not supported M.2 SSD) |
| M.2 Slot | Optional via a PCIe adapter |
| SSD Cache Acceleration Support | √ |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ |
| Wake on LAN (WOL) |
Only the 2.5GbE port
|
| Jumbo Frame | √ |
| PCIe Slot | 1 Slot 1: PCIe Gen 2 x2 PCIe bandwidth limitations will restrict the NAS 10GbE performance.
Card dimensions for PCIe slot：220 x 68.9x 18.76 mm / 8.67 x 2.71 x 0.74 inches. |
| USB 3.2 Gen 1 port | 4 |
| Form Factor | 2U Rackmount |
| LED Indicators | HDD 1-12, Status, LAN, Storage expansion |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 3.49 × 17.01 × 20.12 inch
Excludes ear hook and the protruding part of the Power Supply Unit.
|
| Weight (Net) | 28.53 lbs |
| Weight (Gross) | 32.94 lbs |
| Operating Temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 250W (x2) PSU, 100 – 240V |
| Power Consumption: Operating Mode, Typical | 83.57 W
Tested with drives fully populated.
|
| Fan | 2 x 70mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 700 |
