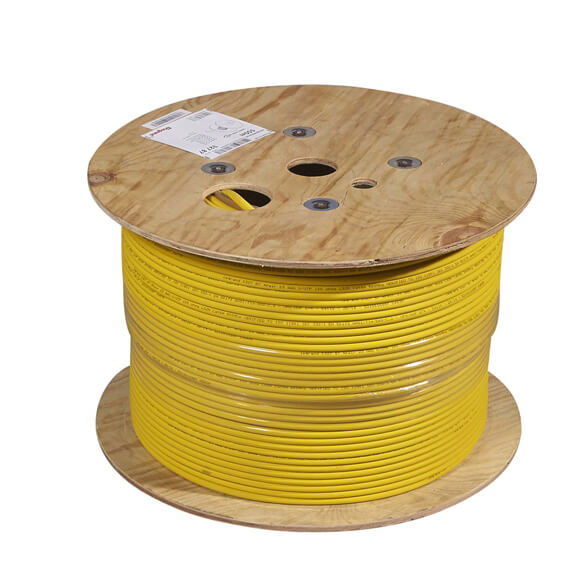

Legrand Cable Cat 6A F/UTP 4 Pairs LSZH 500M 23AWG
26,500.00 EGP
– Category 6A F/UTP : for up to 10 Gigabits per second data rate, shielded cable
– 4 pairs cable
– Low Smoke Zero Halogen materials that emit limited smoke and no halogen when exposed to high sources of heat.
– Euroclass Dca offers adequate reaction to fire with a certification of compliance from an independent laboratory.
– Power over Ethernet : PoE (15W) applications compatible
| Feature Name | Feature Value |
| Protective sheath (EF001691) | None |
| Halogen free according to EN IEC 60754-2 (EF003792) | Yes |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles (EF011579) | d2 |
| Cable height approx. (EF003797) | 8.3 mm |
| Reaction-to-fire according to EN 13501-6: Smoke production (EF011578) | s2 |
| Reaction-to-fire according to EN 13501-6: Class (EF011577) | Dca |
| Weight (EF000167) | 51 |
| Cable width approx. (EF003796) | 8.3 mm |
| Duplex (EF023003) | No |
| Cable type (EF000081) | F/UTP |
| Conductor surface (EF010804) | Bare |
| Oil resistant according to EN IEC 60811-404 (EF009770) | No |
| Number of stranding elements (EF001688) | 4 |
| With rip cord (EF017088) | No |
| Suitable for use as security alarm cable (EF017089) | No |
| Reaction-to-fire according to EN 13501-6: Acidity (EF011580) | a1 |
| Min. permitted bending radius, stationary application/permanent installation (EF011803) | 29.5 mm |
| Min. permitted bending radius, moving application/free movement (EF011802) | 67 mm |
| Min. permitted bending radius, moving application with forced guidance (EF011801) | 59 mm |
| Specification material outer sheath (EF011806) | Polyethylene (PE) |
| Specification core insulation (EF011805) | Polyethylene (PE) |
| Circuit integrity according to IEC 60331-23 (EF016619) | No |
| Category (EF001619) | 6A (IEC) |
| Approved type of underground installation (EF015176) | Other |
| Colour outer sheath (EF001618) | Yellow |
| Halogen free according to EN IEC 60754-3 (EF016500) | No |
| Radial water blocking cable (EF011012) | Yes |
| Low smoke according to EN IEC 61034-2 (EF003799) | Yes |
| Longitudinal water blocking cable (EF011011) | No |
| Stranding element (EF001617) | Pairs |
| Number of cores (EF001792) | 8 |
| Core identification (EF000067) | Colour |
| NVP value (EF008387) | 66% |
| Material core insulation (EF000061) | Other |
| Nominal cross section conductor (EF000060) | 0.25 mm² |
| Halogen free according to EN IEC 60754-1 (EF016498) | Yes |
| Flame retardant according to IEC 60332-3-24 (Cat C) (EF016496) | No |
| Flame retardant according to IEC 60332-3-25 (Cat D) (EF016497) | No |
| Conductor material (EF001622) | Copper |
| Stranding (EF003802) | Bundle |
| Diameter conductor (EF001621) | 0.56 mm |
| Screen over stranding (EF001624) | Foil |
| Suitable for underground installation (EF003689) | No |
| Outer diameter approx. (EF003921) | 7.3 mm |
| Screen over stranding element (EF001623) | None |
| Drain wire (EF001029) | No |
| Flame retardant according to IEC 60332-3-22 (Cat A) (EF016494) | No |
| Material outer sheath (EF001625) | Other |
| Flame retardant according to IEC 60332-3-23 (Cat B) (EF016495) | No |
| Characteristic impedance (EF001628) | 100 Ohm |
| Flame retardant according to IEC 60332-1-2 (EF016492) | Yes |
| Flame retardant according to IEC 60332-3-21 (Cat A F/R) (EF016493) | No |
| AWG size (EF011789) | 23 |
| Armouring/reinforcement (EF001683) | None |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -20 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | 0 °C |
| Compatible with Grade3TV according to XP-C 90-483 (EFFR0002) | No |
| Core identification according to HD 308 S2 (EF013766) | No |
| Suitable as telephone cable (EF013768) | Yes |
| Compatible with Grade2TV according to XP-C 90-483 (EFFR0001) | No |
| Suitable as computer data cable (EF013769) | Yes |
| Suitable as signalling cable (EF013770) | No |
| Certified for shipboard application (EF013772) | No |
| Cable geometry (EF013532) | Round |
| Conductor category (EF001632) | Class 1 = solid |
